Pouches/bags do not feed all the way through. Pouches/bags stop feeding during application (PL400)

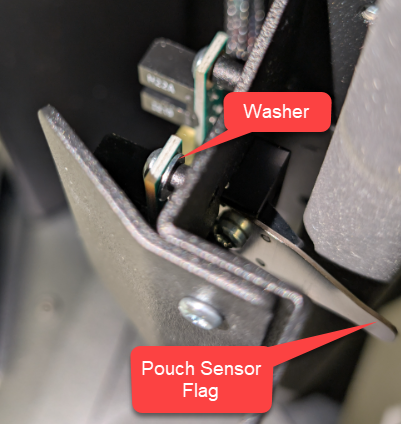

The pouch sensor below the pouch feed rollers requires constant pressure to engage the pouch feeding motor.  If you have a bag that is pliable or floppy, such as a clear zip-lock bag, it may not have enough weight to depress the sensor flag during the entire application process.  There is a setting to run that motor for a specific length after the sensor flag has been initially depressed.

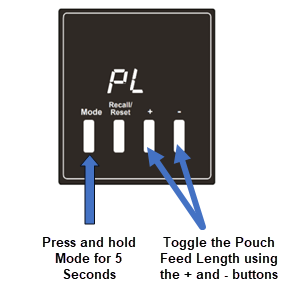

To access this setting, press and hold the MODE button until “PL” is displayed.   To see how the option is currently set, press the + button.  Press the + or the – button to toggle the setting up or down. By default, the system is set to zero, which uses the pouch sensor to determine when the pouch feed motor stops. You can set this setting from 1-40.  This represents the number of inches the motor will run after label application. Try setting this to 2 inches longer than your pouch bag length.  So if your bag is 8" long, set this setting to 10.  This will run the pouch feed rollers continuously after label application has started, regardless of whether the pouch sensor is still engaged.  Note: These settings require firmware version 1.12.  If you have this version, you will see -12 or +12 (or higher) displayed briefly at startup.

Article ID: 012226
