Platform Feed/Lift Obstruction Error (Eddie)
1. Remove obstructions. You may encounter this error at printer start-up if there is anything blocking the platform/tongue movement. Ensure the crumb catcher is installed correctly and not blocking the cookie sensor on the right side or the front-to-back movement of the platform/tongue. The hooks on the back of the crumb catcher should align with the slots on the back of the printer. You should be able to see the hooks on the back of the printer.
2. Remove any cookies, trays, adapters, or paper towels attached to the platform. Nothing should be on the platform when you turn on the printer. It checks and calibrates the platform during start-up. You can add these items after the printer has completed its start-up routine and no errors are present.

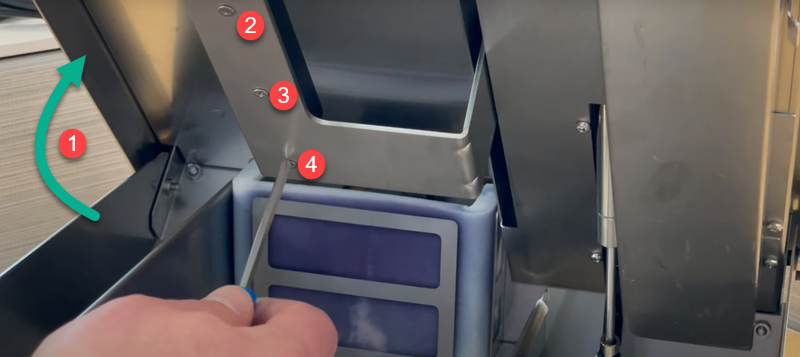

3. Tighten the screws on the platform bracket. Open the top half of the printer. Tighten the screws with a long-handle screwdriver to get more torque.
4. Install the tinted cover. Make sure you install the tinted cover. It helps block any excess light from affecting the cookie sensor.
5. Clean the cookie sensor. Ink overspray mist can build up on this important sensor and cause incorrect errors.
https://youtu.be/YcaApaTRlk0
https://youtu.be/YcaApaTRlk0
6. Clean the Encoder Strip according to these instructions.
7. Clean the Tongue Encoder Wheel. The tongue encoder wheel is used to determine the front to back position of the tongue. Overtime ink overspray mist can build up on this wheel and prevent it from being read by the sensor or there may be a spot of grease blocking it. Cleaning it is easy but requires removing the cover. Follow these steps:
A. Remove the cover by following the instructions at the start of this video. Watch the cover removal process from 26 to 48 seconds.
B. Clean the encoder wheel according to the video below:
8. Ensure the internal ribbon cable is attached. (Advanced).
A. Remove the cover by following the instructions at the start of this video. Watch the cover removal process from 26 to 48 seconds.
C. Reinstall the cover screws. Watch this video starting at 2:45
Article ID: 072621
