The Lamination Mode Setting is Missing from Print Hub for my LX610.

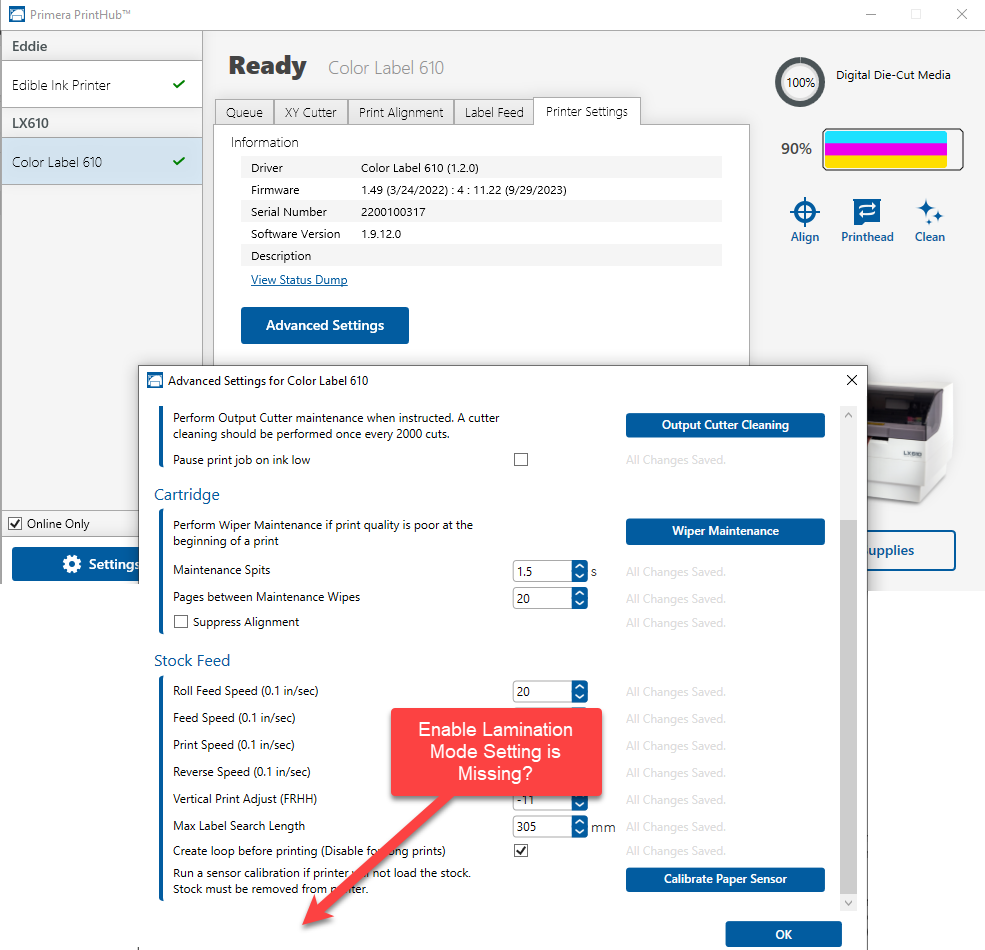

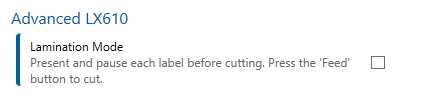

The lamination mode setting is available on the Printer Settings Tab in Advanced Settings. Scroll to the bottom to find it.
If it is not visible, try the following:
A. Restart Print Hub.
1. Close Print Hub.
2. Power ON the LX610.
3. Open Print Hub with the LX610 powered on.
B. Update Firmware - Instructions
Note: Print Hub checks the version of the firmware at start-up and only displays the option if the LX610 is updated past a certain version. If the firmware has not been updated past version 1.44 or the LX610 is not powered on, the Lamination Mode option will not appear.
Article ID: 020224
