How to adjust cross cutter offset in Print Hub for LX610.

1. Update to the latest version of Print Hub.  Follow this article.

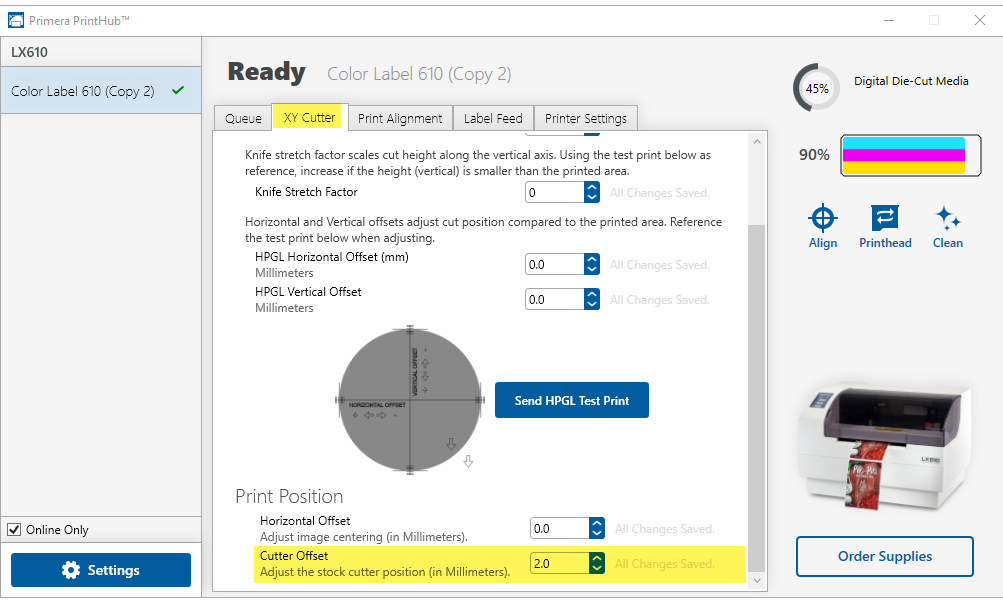

2. Digital Die Cut Mode: To adjust the cross cut offset in digital die cut mode, insert digital die cut media (with a smart chip) and then go to XY Cutter tab that appears.

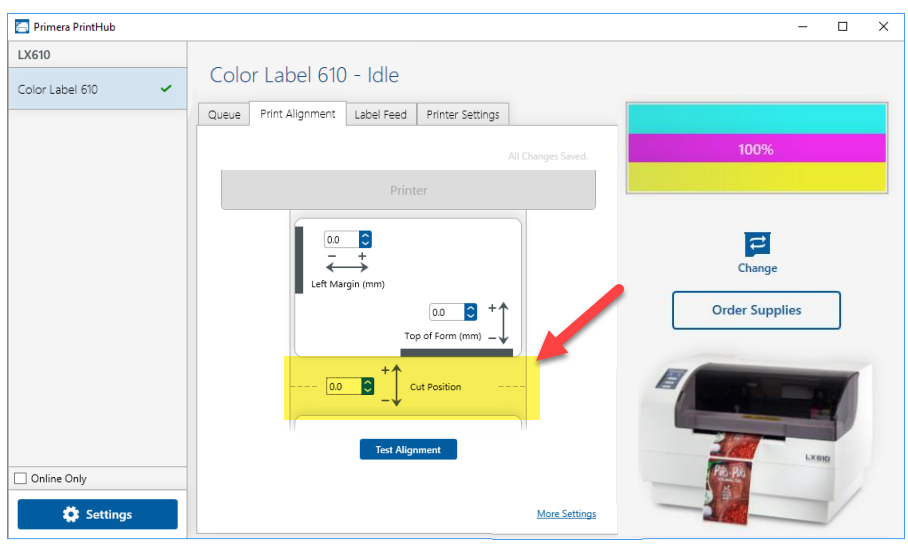

3. Pre die-cut mode: To adjust the cross cut offset with pre die cut label stock, (no smart chip, blank green hub installed) go to the print alignment tab.  Adjust Cut Position.

Article ID: 111324
