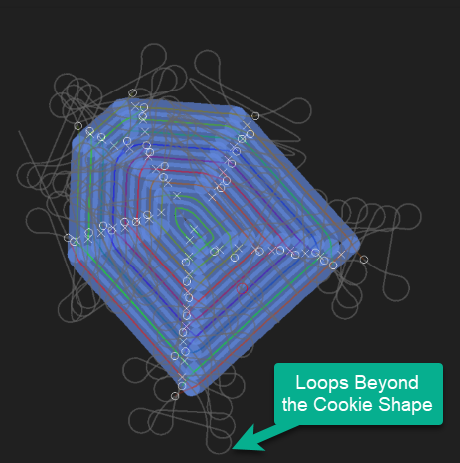

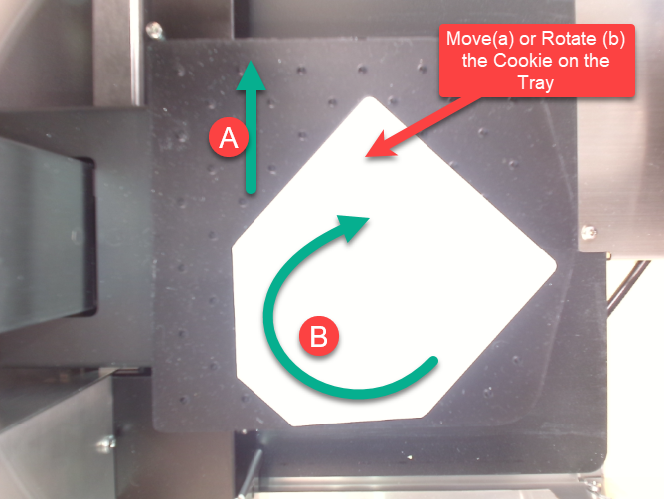

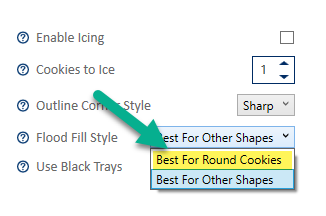

X Motor Stall or X Home Error (Freddie)

A. Obstruction

This error can occur if the side to side (left to right) movement of the tongue is blocked or obstructed.  Find the obstruction and remove it.

B. Specific Settings

This error can occur under normal without an obstruction if all of the following are true:

1. Flood Fill Style is set to Best for Other Shapes.

2. Using the Black Trays

3. Icing a shape other than a circle

4. That cookie is very large (almost as big as the tray) or is offset to the right slightly on the tray.


Solution:

To fix the error change any one of the the options above.  That being said, the simplest solution is the change the Flood Fill Style to "Best for Round Cookies" even if you cookie shape is not round.

Best for Other Shapes causes the path of the nozzle to loop beyond the boundary of the cookie which moves the tray too close to the interior edge of the machine.  Future software updates will warn for this condition.

Image showing loops beyond the boundary of the cookie

Image showing solution of moving or rotating the cookie.

https://www.primera.com/freddiedownloads

Article ID: 111925

• Related Articles

• Y Motor Stall Error when you turn on the unit (Freddie).

  The Y motor controls Freddie's front-to-back movement. While the motor itself is inside the left cover area, the entire tongue assembly rides on two wheels on the far right side of the machine. If dried frosting or other obstructions prevent the ...

• Carrier Stall Error (IP60, LX600, LX610, LX910 or LX3000)

  This error indicates that the printer is having trouble moving the cartridge carrier from side to side.  Check the following: 1.  Check for obstructions in the path of the cartridge carrier.  Look for paper/media that has jammed or bubbled up and is ...

• Cutter Stall Error (LX600-LX610)

  The cutter referred to by this error message is the output cutter located at the front of the printer. This is a pizza wheel-style cutting disc that completely cuts through the label/media at the end of the job or at the end of every page, depending ...

• Arm Picker Error / Carrier Stall received on unit start up (Bravo 4100 Series, 4200 Series, SE, and SE-3)

  This error typically indicates that the encoder strip is not being detected by the sensor on the back of the printer carriage. The encoder strip is the clear strip that spans the left to right distance where the printer carriage (cartridge holder) ...

• My LX610 or LX600 is skipping, slipping, printing over on the same spot or printing out of alignment left to right. Feed Stall. (LX610-LX600)

  There are several reasons for skipping labels or a feed stall error on the LX-Series printers. A full article explaining all of the possibilities can be found here. See below for the LX600/LX610 specific reasons. Create Loop. Check the create loop ...
