There are lines through the text on my cookie/label when printing from BarTender. (Eddie, LX Series)
There is a known bug in the BarTender software that causes a 1/16" line to print through certain text and fonts. See example:
Workaround Instruction.
To fix this issue, first, try a different font. If you must use the font you have chosen, you can export your template as a PNG file. Then reimport that image into a new template of the same size or the same template.
1. Go to the File menu. Choose Export Image...

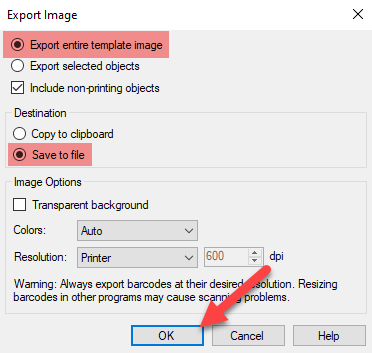

2. Choose Export entire template image and Save to File. Click OK.
3. Browse to the location you would like to save the file to and click OK.
4. Now drag and drop that image over the top of the your existing template. It should look the same. You may choose to delete the objects behind the new image or leave them in place.
5. Now print again.
Article ID: 102921
