Freddie/Eddie Power Requirements
Note: The Freddie Power Supply is different than the Eddie Power Supply despite their similar visual appearance. The Eddie Power Supply will not work for the Freddie.
Freddie Power:
Input: 100-240v
Output: 12v 5.0 Amps 60 watts
Eddie Power:
Input: 100-240v
Output: 12v 3.0 Amps 36 watts

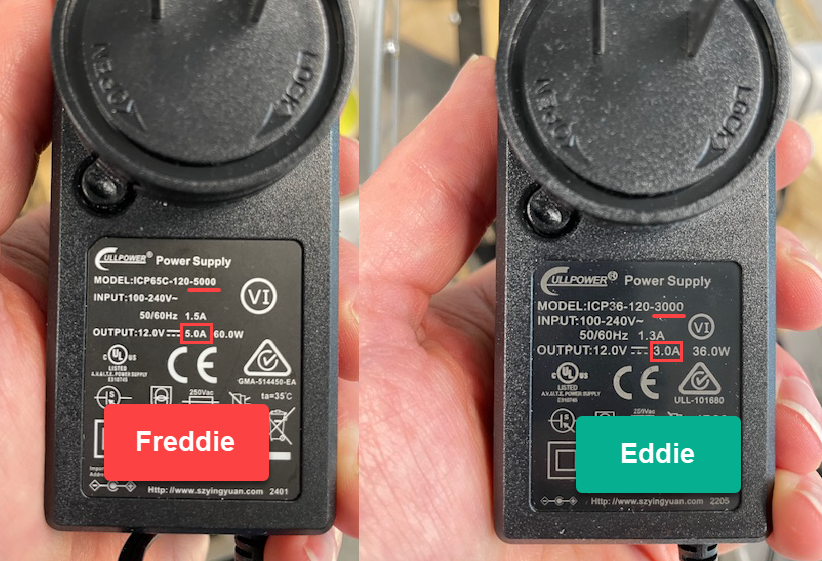

Using an Eddie Power Supply on a Freddie will cause a variety of errors at various points during operation. Unfortunately, no clear error is displayed. For this reason the Freddie power supply will have a label around the barrel. You can also compare the specifications as shown below.
Article ID: 101525b
