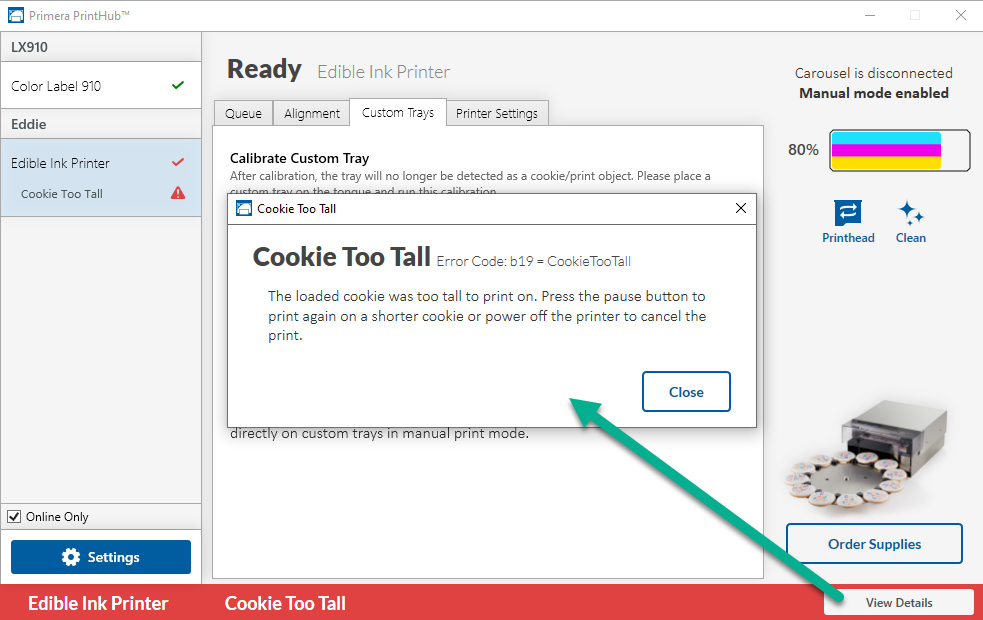

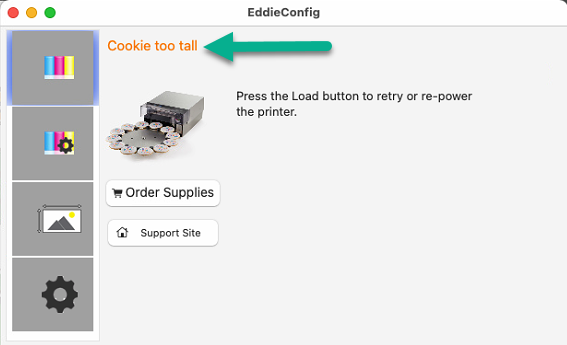

Cookie Too Tall Error (Eddie)

If you receive this error it means that the cookie is short enough to fit inside the Eddie print area but too tall for the cookie height sensor to see over.  Eddie can't get a good reading on the top of the cookie so the proper print head height can not be set.

Cookie Height Specifications:

In Manual Mode:

Height = 1.00" or less including any custom trays.  Remember to measure the height of the the custom tray + the cookie height.

In Manual Mode with the platform kit installed and NO Riser installed:

Height = 1.00" to 2.00"

Article ID: 101524
