Cartridge Type Error (AP-Code)

1. Remove the cartridge from the carrier.

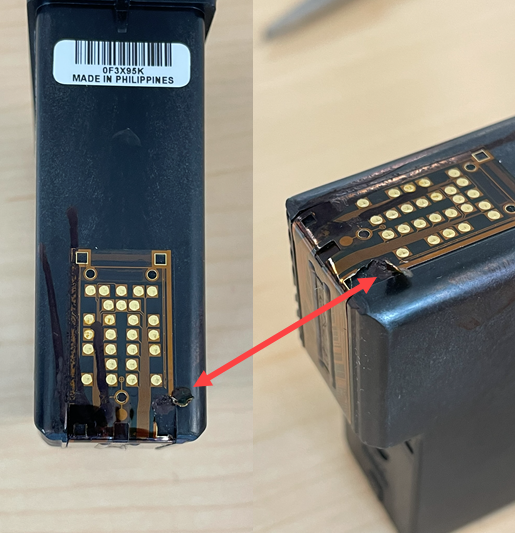

2. Check for damage to the copper contact leads.  See example below.   If multiple cartridges are damaged, it could mean there is a problem with you cartridge carrier.

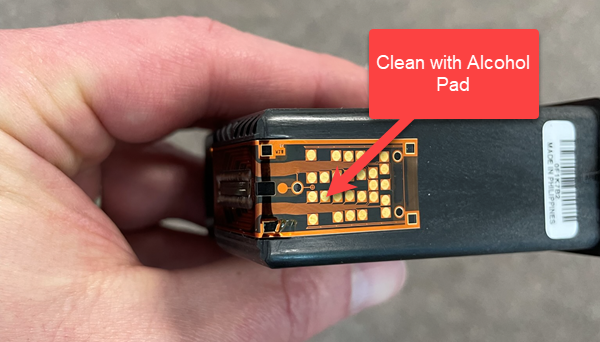

3. Clean the copper contacts on the cartridge with a alcohol/glasses wipe.

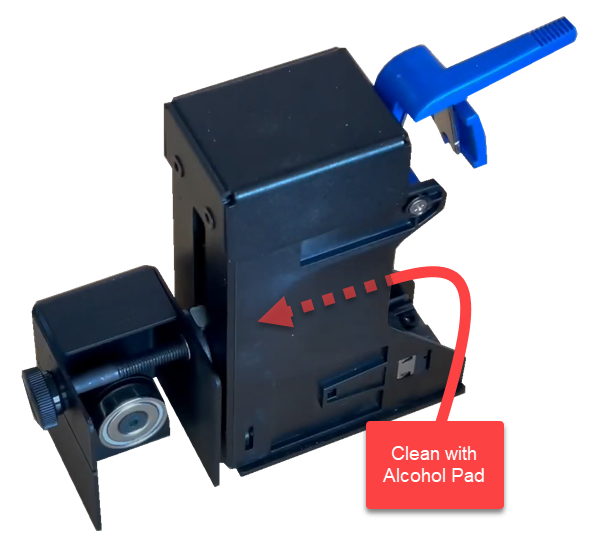

4. Clean the copper contacts on the cartridge carrier with an alcohol/glasses wipe.

Article ID: 082825
