Cartridge Data Error occurs after swapping from one partially used cartridge to another (LX600, LX610, LX910)

Cartridge Data Error occurs after swapping from one partially used cartridge to another (LX600, LX610, LX910)

This can be caused by two scenarios:

1. Removal While Reading.  It is best practice to power off the printer before swapping the cartridge if switching between partially used ink cartridges on the same printer, such as when you switch from one of three types of ink available for these printer models (Dye, Dye plus Ultra Black, and Pigment).
If the cartridge is removed while the printer is trying to read it, there is a small chance it will be damaged and become unreadable (Cartridge Data Error).   Powering off the printer first will ensure this can not happen. Under normal use, you would only remove the cartridge when it is empty. In this case, it is not necessary to power off the printer because the cartridge being removed will be discarded, and it will not matter if it is damaged.

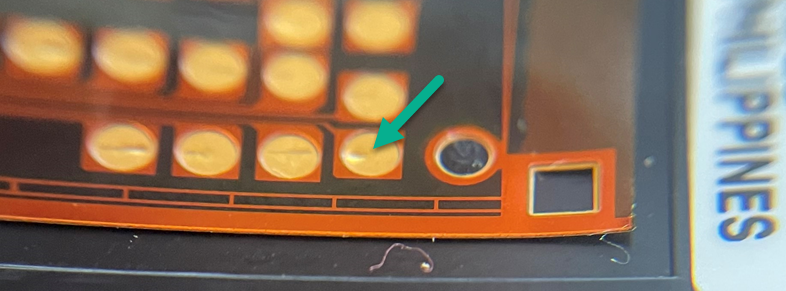

2. Cartridge Contact Divots. In general, multiple installations of the same cartridge over and over again can cause problems with the contact points on the cartridge. The small electrical contact pads on the cartridge develop a small divot from the force of the contact point/pin in the carrier assembly. These divots can get deeper or move slightly with every re-insertion of the cartridge. Eventually, the depth and breadth of the divots may result in a loss of electrical connection across the contact and subsequent cartridge read errors. The divot becomes so deep that the corresponding pins can no longer reach the bottom of the divot. In our testing, we saw consistent problems after about ten re-insertions of the cartridge, but it is possible problems could occur with even fewer re-insertions. The cartridges are not designed for continual swapping.

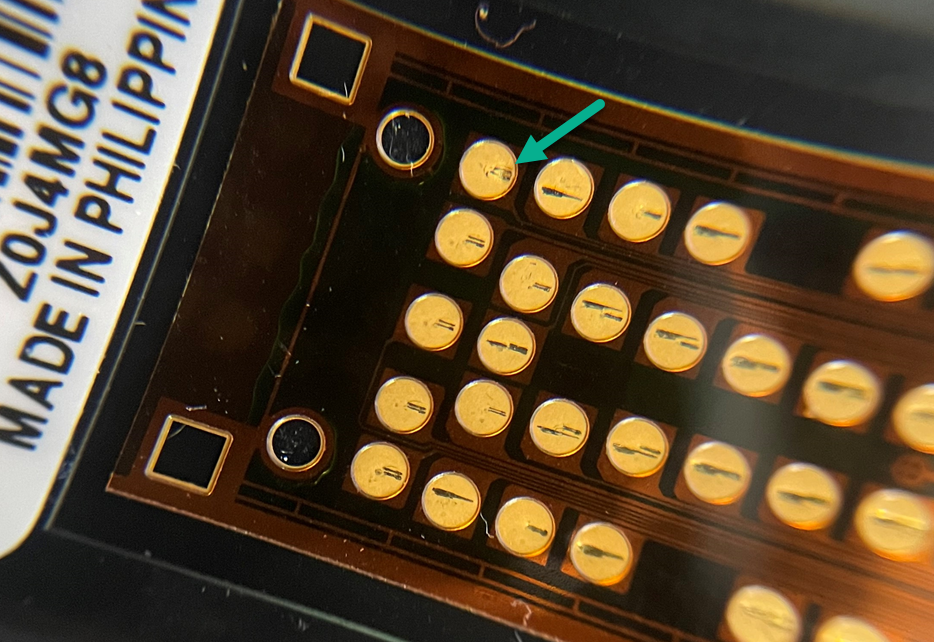

10x magnification showing contact divot



Article ID: 100622
